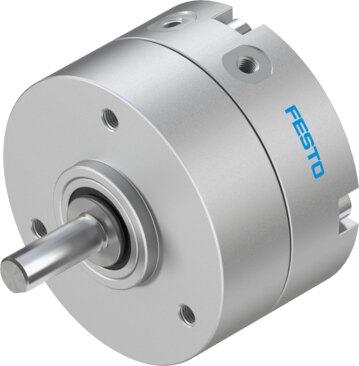

Name: Festo 1845708 Rotary actuator DRVS-8-90-P
Brand: Festo

Rotary actuator DRVS-8-90-P

The Festo part number 1845708 is a double-acting industrial component featuring a rotary vane structural design with a size of 8 and an adjustable swivel angle from 0 to 90 degrees. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within an operating pressure range of 0.35 MPa to 0.8 MPa, this unit integrates elastic cushioning rings at both ends with a 0.5-degree cushioning angle and a 10 mm permissible stop radius. It achieves a max swivel frequency of 3 Hz at 6 bar with a repetition accuracy of 1 degree, and includes position sensing via proximity switch, a spigot shaft variant, and any mounting position. The assembly holds a corrosion resistance class of CRC 1, VDMA24364-B2-L LABS conformity, ISO 14644-1 Class 5 cleanroom suitability, and F1a battery production suitability for ambient temperatures between 0 °C and 60 °C, with oil lubrication operation possible. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1845708
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1845708.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 8
Cushioning angle: 0.5 deg
Swivel angle: 0 deg...90 deg
Permissible stop radius: 10 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Structural design: Rotary vane
Position sensing: Via proximity switch
Variants: Spigot shaft
Operating pressure: 0.35 MPa...0.8 MPa | 3.5 bar...8 bar
Max. swivel frequency at 6 bar: 3 Hz
Repetition accuracy: 1 deg
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
Ambient temperature: 0 °C...60 °C
Max. stop force: 30 N
Max. axial force: 10 N
Max. radial force: 20 N
Theoretical torque at 6 bar: 0.35 Nm
Permissible mass moment of inertia: 0.0013 kgm²
Product weight: 68 g
Type of mounting: With internal thread
Pneumatic connection: M3
Note on materials: RoHS compliant
Drive shaft material: high-alloy stainless steel
