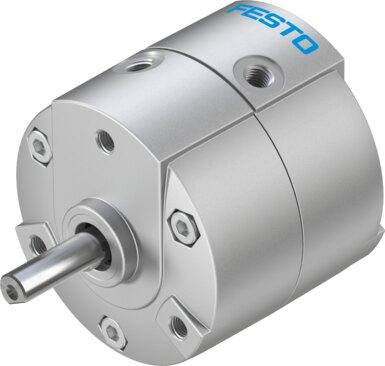

Reference imageConfirm configuration by manufacturer part number.
Festo
1845712
Rotary actuator DRVS-12-270-P
The Festo part number 1845712 is a double-acting industrial component featuring a rotary vane structural design with a size 12 and a swivel angle from 0 deg to 270 deg. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] at an operating pressure of 0.25 MPa to 0.8 MPa and includes elastic cushioning rings or pads at both ends with a 0.5 deg cushioning angle. Position sensing is achieved via proximity switch, and the unit supports a maximum swivel frequency of 2 Hz at 6 bar with a repetition accuracy of 1 deg. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1845712
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1845712.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Cushioning angle
- 0.5 deg
- Swivel angle
- 0 deg...270 deg
- Permissible stop radius
- 15 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Variants
- Spigot shaft
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Max. swivel frequency at 6 bar
- 2 Hz
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Max. stop force
- 90 N
- Max. axial force
- 20 N
- Max. radial force
- 25 N
- Theoretical torque at 6 bar
- 1 Nm
- Permissible mass moment of inertia
- 0.005 kgm²
- Product weight
- 150 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Drive shaft material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1845712. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
