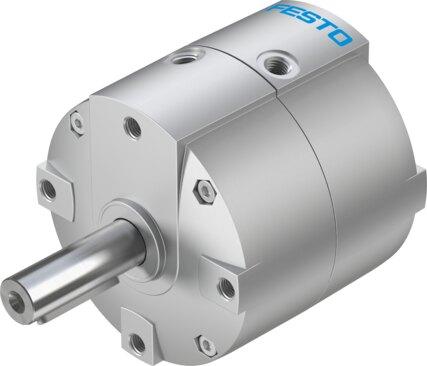

Reference imageConfirm configuration by manufacturer part number.
Festo
1845722
Rotary actuator DRVS-40-90-P
The Festo part number 1845722 is a double-acting rotary vane industrial component featuring a size 40 design with a spigot shaft and a swivel angle ranging from 0 deg to 90 deg at a 0.5 deg cushioning angle. It operates on compressed air within a pressure range of 0.2 MPa to 0.8 MPa and a maximum swivel frequency of 3 Hz at 6 bar, utilizing elastic cushioning rings or pads at both ends and position sensing via proximity switch. This unit offers a repetition accuracy of 1 deg, an ambient temperature range of 0 °C to 60 °C, and is suitable for battery production with reduced Cu/Zn/Ni values alongside ISO 14644-1 Class 5 cleanroom suitability. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1845722
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1845722.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Cushioning angle
- 0.5 deg
- Swivel angle
- 0 deg...90 deg
- Permissible stop radius
- 40 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Variants
- Spigot shaft
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Max. stop force
- 650 N
- Max. axial force
- 120 N
- Max. radial force
- 350 N
- Theoretical torque at 6 bar
- 20 Nm
- Permissible mass moment of inertia
- 0.035 kgm²
- Product weight
- 1530 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel, nickel-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1845722. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
