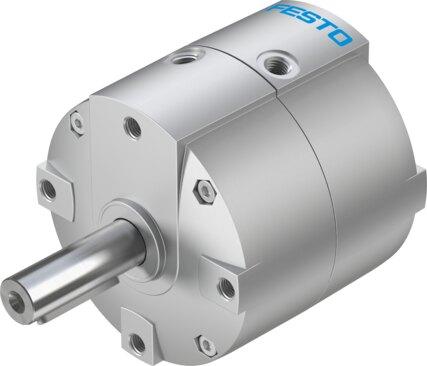

Name: Festo 1845724 Rotary actuator DRVS-40-270-P
Brand: Festo

Rotary actuator DRVS-40-270-P

The Festo part number 1845724 is a double-acting rotary vane industrial component featuring a size 40 design with a swivel angle from 0 degrees to 270 degrees and a cushioning angle of 0.5 degrees. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within an operating pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar), this unit utilizes elastic cushioning rings or pads at both ends and incorporates position sensing via proximity switch. It achieves a maximum swivel frequency of 2 Hz at 6 bar with a repetition accuracy of 1 degree, a permissible stop radius of 40 mm, and features a spigot shaft variant with any mounting position. The component maintains a corrosion resistance class of CRC 1, VDMA24364-B2-L LABS conformity, ISO 14644-1 Class 5 cleanroom suitability, and F1a Li-ion battery production suitability for ambient temperatures from 0 °C to 60 °C, with oil lubrication operation possible. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1845724
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1845724.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 40
Cushioning angle: 0.5 deg
Swivel angle: 0 deg...270 deg
Permissible stop radius: 40 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Structural design: Rotary vane
Position sensing: Via proximity switch
Variants: Spigot shaft
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar
Max. swivel frequency at 6 bar: 2 Hz
Repetition accuracy: 1 deg
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
Ambient temperature: 0 °C...60 °C
Max. stop force: 650 N
Max. axial force: 120 N
Max. radial force: 350 N
Theoretical torque at 6 bar: 20 Nm
Permissible mass moment of inertia: 0.035 kgm²
Product weight: 1470 g
Type of mounting: With internal thread
Pneumatic connection: G1/8
Note on materials: RoHS compliant
Drive shaft material: Steel, nickel-plated
