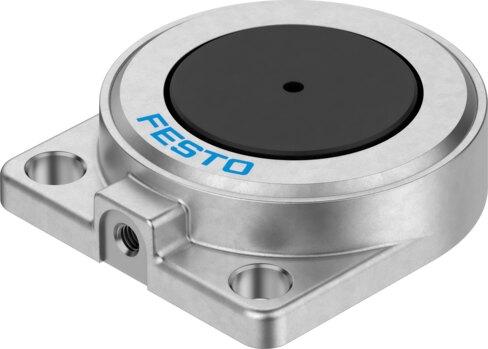

Reference imageConfirm configuration by manufacturer part number.
Festo
184858
Clamping module EV-50-5
The Festo 184858 industrial component is a single-acting part featuring a 5 mm stroke and a Ø 50 clamping area with any mounting position. Constructed with a die-cast aluminum housing and a TPE-U(PU) diaphragm, this 68 g unit operates at 0.6 MPa (6 bar, 87 psi) using compressed air as per ISO 8573-1:2010 [7:-:-]. It includes an M3 pneumatic connection, through-hole mounting, VDMA24364-B1/B2-L LABS conformity, and is suitable for the production of Li-ion batteries while excluding metals with more than 5% by mass of copper. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 184858
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 184858.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 mm
- Clamping area
- Ø 50
- Mounting position
- Any
- Mode of operation
- Single-acting
- Operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper are excluded from use. | This excludes printed circuit boards, cables, electrical connectors and | coils.
- Ambient temperature
- -10 °C...40 °C
- Product weight
- 68 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Housing material
- Die-cast aluminum
- Diaphragm material
- TPE-U(PU)
