184859

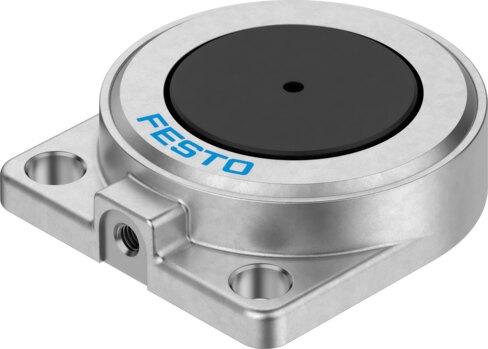

Name: Festo 184859 Clamping module EV-63-5
Brand: Festo

Clamping module EV-63-5

The Festo part number 184859 is a single-acting industrial component featuring a 5 mm stroke and an O 63 clamping area, designed for operation with compressed air as per ISO 8573-1:2010 [7:-:-] at an operating pressure of 0.6 MPa, 6 bar, or 87 psi. Built with a die-cast aluminum housing and a TPE-U(PU) diaphragm, this 100 g unit offers an ambient temperature range of -10 °C to 40 °C, universal mounting position capability, through-hole mounting, and an M3 pneumatic connection while complying with VDMA24364-B1/B2-L LABS conformity and excluding copper-heavy metals above 5% mass for Li-ion battery production suitability. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 184859
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 184859.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 5 mm
Clamping area: Ø 63
Mounting position: Any
Mode of operation: Single-acting
Operating pressure: 0.6 MPa | 6 bar | 87 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Metals with more than 5% by mass of copper are excluded from use. | This excludes printed circuit boards, cables, electrical connectors and | coils.
Ambient temperature: -10 °C...40 °C
Product weight: 100 g
Type of mounting: With through-hole
Pneumatic connection: M3
Housing material: Die-cast aluminum
Diaphragm material: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 184859. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
