Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

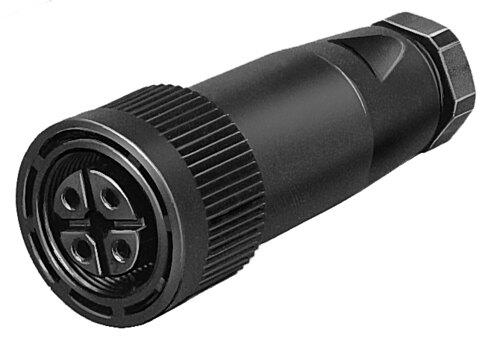

Reference imageConfirm configuration by manufacturer part number.
Festo
18493
Plug socket NTSD-GD-9
The Festo part number 18493 is an industrial component featuring a union nut mounting design and an arbitrary mounting position with a product weight of 25 g. It utilizes a 4-pin straight socket electrical connection with a screw terminal, accommodating a 1.5 mm² connection cross section, a Pg9 cable fitting, and approved cable diameters ranging from 6 mm to 8 mm. Constructed with a PBT housing and copper alloy and brass pin contacts, this assembly operates within an AC voltage range up to 250 V at a 16 A current rating, maintains an IP67 degree of protection, and conforms to VDMA24364-B2-L LABS standards across an ambient temperature range of -5 °C to 50 °C and storage temperatures from -20 °C to 70 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 18493
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 18493.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- With union nut
- Mounting position
- Any
- Product weight
- 25 g
- Electrical connection
- 4-pin | Straight socket | Screw terminal
- Operating voltage range AC
- 250 V
- Current rating
- 16 A
- Cable tting
- Pg9
- Approved cable diameter
- 6 mm...8 mm
- Connection cross section
- 1.5 mm²
- Degree of protection
- IP67
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- PBT
- Material of pin contacts
- Copper alloy | Brass
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 18493. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
