Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

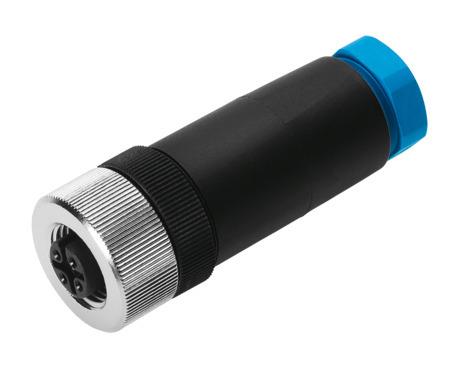

Reference imageConfirm configuration by manufacturer part number.
Festo
18495
Plug socket FBSD-GD-9
The Festo 18495 is a 29 g industrial component featuring a 4-pin straight socket/screw terminal with an M12x1 connection and Form A design, based on EN 61076-2-101 and EN 61984 norms. It operates within a 250 V AC and DC range at a 4 A current rating at 40° C, incorporating a 2.5 kV surge resistance, Pg9 cable fitting for 8 mm to 9.5 mm cables, and a 0.75 mm² connection cross section. Designed with an IP67 degree of protection, contamination level 3, and CRC 1 low corrosion stress, this unit functions across an ambient temperature range of -40 °C to 85 °C in any mounting position via a union nut. It complies with EU low voltage and UK electrical equipment directives, VDMA24364-B2-L LABS conformity, and RoHS material requirements. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 18495
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 18495.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-101 | EN 61984
- Type of mounting
- With union nut
- Mounting position
- Any
- Product weight
- 29 g
- Electrical connection
- 4-pin | Straight socket/screw terminal | Form A | M12x1
- DC operating voltage range
- 250 V
- Operating voltage range AC
- 250 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 2.5 kV
- Cable tting
- Pg9
- Approved cable diameter
- 8 mm...9.5 mm
- Connection cross section
- 0.75 mm²
- Degree of protection
- IP67
- Ambient temperature
- -40 °C...85 °C
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS-compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA-reinforced
- Housing colour
- Black
- Material of union nut
- Die-cast zinc | Nickel-plated
- Material of pin contacts
- Bronze | White bronze, coated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 18495. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
