Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

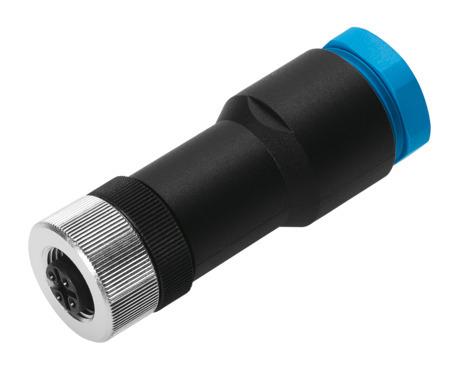

Reference imageConfirm configuration by manufacturer part number.
Festo
18496
Plug socket FBSD-GD-13,5
The Festo industrial component, part number 18496, is a 4-pin straight socket with a screw terminal, M12x1 connection, and Pg13.5 cable fitting designed for cable diameters from 10 mm to 12 mm and a 0.75 mm² connection cross section. Built to EN 61076-2-101 and EN 61984 norms with an IP67 degree of protection and CRC 1 low corrosion stress resistance, this 40 g unit operates within an AC/DC voltage range of 250 V, a 4 A current rating at 40° C, and an ambient temperature range of -40 °C to 85 °C. It features any mounting position with a union nut, 2.5 kV surge resistance, contamination level 3, RoHS compliance, VDMA24364-B2-L LABS conformity, and CE/UKCA markings as per respective electrical directives. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 18496
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 18496.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-101 | EN 61984
- Type of mounting
- With union nut
- Mounting position
- Any
- Product weight
- 40 g
- Electrical connection
- 4-pin | Straight socket/screw terminal | Type A | M12x1
- DC operating voltage range
- 250 V
- Operating voltage range AC
- 250 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 2.5 kV
- Cable tting
- Pg13.5
- Approved cable diameter
- 10 mm...12 mm
- Connection cross section
- 0.75 mm²
- Degree of protection
- IP67
- Ambient temperature
- -40 °C...85 °C
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA-reinforced
- Housing colour
- Black
- Material of union nut
- Die-cast zinc | Nickel-plated
- Material of pin contacts
- Bronze | White bronze, coated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 18496. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
