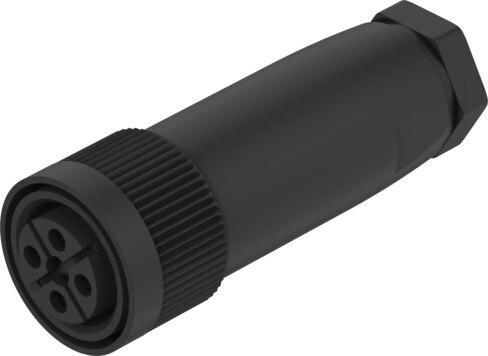

Reference imageConfirm configuration by manufacturer part number.
Festo
18526
Power supply socket NTSD-GD-13,5
The Festo part number 18526 is a 31 g industrial component featuring a straight socket, 4-pin configuration, and screw terminal with a connection cross section of 2.5 mm². Constructed with a PBT housing and copper alloy and brass pin contacts, it provides an IP67 degree of protection, operates at an AC voltage range up to 250 V with a 16 A current rating, and mounts via union nut in any position for cables sized 10 mm to 12 mm through a Pg13 cable fitting within an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 18526
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 18526.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- With union nut
- Mounting position
- Any
- Product weight
- 31 g
- Electrical connection
- 4-pin | Straight socket | Screw terminal
- Operating voltage range AC
- 250 V
- Current rating
- 16 A
- Cable tting
- Pg13
- Approved cable diameter
- 10 mm...12 mm
- Connection cross section
- 2.5 mm²
- Degree of protection
- IP67
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- PBT
- Material of pin contacts
- Copper alloy | Brass
