Festo
185280

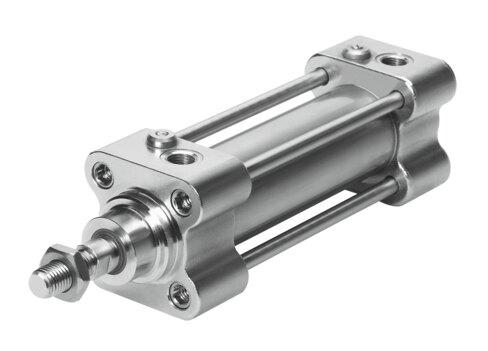

ISO cylinder CRDNG-125- -PPV-A
The Festo 125 mm piston diameter double-acting industrial component features a stroke length ranging from 10 mm to 2000 mm, an M27x2 piston rod thread with an external thread end, and tie rod structural design. Operating at pressures from 0.06 MPa to 1 MPa with compressed air as per ISO 8573-1:2010 [7:4:4], this ISO 15552 conforming cylinder delivers a theoretical advancing force of 7363 N and retracting force of 6881 N at 6 bar. It incorporates adjustable pneumatic cushioning at both ends across a 40 mm cushioning length, position sensing via proximity switch, and CRC 4 particularly high corrosion stress resistance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185280
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185280.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...2000 mm
- Piston diameter
- 125 mm
- Piston rod thread
- M27x2
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...80 °C
- Cushioning length
- 40 mm
- Theoretical force at 6 bar, retracting
- 6881 N
- Theoretical force at 6 bar, advancing
- 7363 N
- Moving mass at 0 mm stroke
- 2523 g
- Additional moving mass per 10 mm stroke
- 64 g
- Basic weight with 0 mm stroke
- 15500 g
- Additional weight per 10 mm stroke
- 156 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G1/2
- Cover material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 185280. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
