Festo
185281

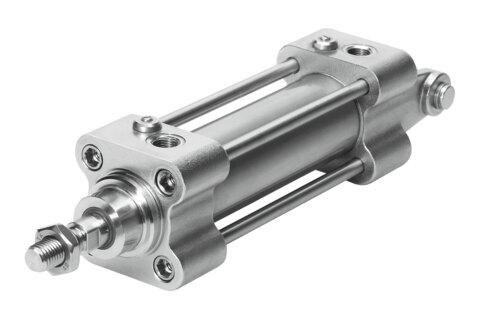

ISO cylinder CRDNGS-125- -PPV-A
The Festo part number 185281 is a double-acting industrial component featuring a 125 mm piston diameter, an M27x2 piston rod thread, and an adjustable stroke length ranging from 10 mm to 2000 mm based on ISO 15552. Built with a piston, piston rod, swivel clevis, tie rod 1, and cylinder barrel, this unit operates at pressures between 0.06 MPa and 1 MPa utilizing compressed air as per ISO 8573-1:2010 [7:4:4]. It offers adjustable pneumatic cushioning at both ends, a 40 mm cushioning length, position sensing via proximity switch, and a corrosion resistance class of 4 for particularly high corrosion stress. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185281
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185281.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...2000 mm
- Piston diameter
- 125 mm
- Piston rod thread
- M27x2
- Based on norm
- ISO 15552
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Swivel clevis | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- End cap with swiveling rod eye
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...80 °C
- Cushioning length
- 40 mm
- Theoretical force at 6 bar, retracting
- 6881 N
- Theoretical force at 6 bar, advancing
- 7363 N
- Moving mass at 0 mm stroke
- 2523 g
- Additional moving mass per 10 mm stroke
- 64 g
- Basic weight with 0 mm stroke
- 16543 g
- Additional weight per 10 mm stroke
- 156 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 185281. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
