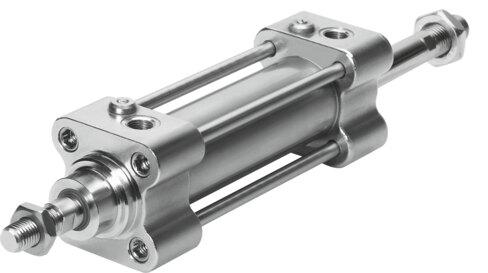

Reference imageConfirm configuration by manufacturer part number.
Festo
185282
ISO cylinder CRDNG-32- -PPV-A-S2
The Festo 185282 is a double-acting industrial component featuring a 32 mm piston diameter, an M10x1.25 piston rod thread, and a stroke range from 10 mm to 2000 mm built to ISO 15552 standards with a tie rod structural design. This unit operates within a pressure range of 0.06 MPa to 1 MPa using compressed air according to ISO 8573-1:2010 [7:4:4], and includes adjustable pneumatic cushioning at both ends with a 19 mm cushioning length. Rated for a corrosion resistance class of 4 for particularly high corrosion stress, it functions across an ambient temperature range of -20 °C to 80 °C and delivers a theoretical retracting force of 415 N at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185282
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185282.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...2000 mm
- Piston diameter
- 32 mm
- Piston rod thread
- M10x1.25
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Through piston rod
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...80 °C
- Cushioning length
- 19 mm
- Theoretical force at 6 bar, retracting
- 415 N
- Theoretical force at 6 bar, advancing
- 483 N
- Moving mass at 0 mm stroke
- 203 g
- Additional moving mass per 10 mm stroke
- 18 g
- Basic weight with 0 mm stroke
- 1078 g
- Additional weight per 10 mm stroke
- 34 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G1/8
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 185282. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
