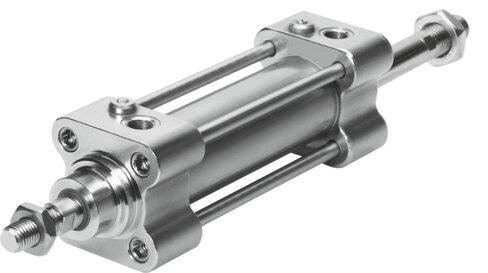

Reference imageConfirm configuration by manufacturer part number.
Festo
185284
ISO cylinder CRDNG-50- -PPV-A-S2
The Festo 185284 is a double-acting industrial component featuring a 50 mm piston diameter, an M16x1.5 piston rod thread, and an adjustable pneumatic cushioning system at both ends with a 23 mm cushioning length. Built to ISO 15552 standards with a tie-rod structural design and CRC 4 corrosion resistance for particularly high stress environments, this unit operates on compressed air within a 0.06 MPa to 1 MPa pressure range and a temperature span of -20 °C to 80 °C. It delivers a theoretical retracting force of 990 N at 6 bar and supports position sensing via proximity switches alongside through piston rod variants in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185284
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185284.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...2000 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Through piston rod
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...80 °C
- Cushioning length
- 23 mm
- Theoretical force at 6 bar, retracting
- 990 N
- Theoretical force at 6 bar, advancing
- 990 N
- Moving mass at 0 mm stroke
- 679 g
- Additional moving mass per 10 mm stroke
- 50 g
- Basic weight with 0 mm stroke
- 2469 g
- Additional weight per 10 mm stroke
- 81 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G1/4
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 185284. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
