Festo
185286

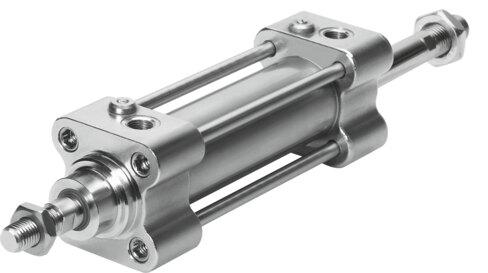

ISO cylinder CRDNG-80- -PPV-A-S2
The Festo part number 185286 is a double-acting industrial component featuring an 80 mm piston diameter, an M20x1.5 external piston rod thread, and a stroke range from 10 mm to 2000 mm. Built with a tie rod structural design conforming to ISO 15552, it incorporates adjustable pneumatic cushioning at both ends over a 30 mm cushioning length, position sensing via proximity switch, and a through piston rod variant. Operating at pressures from 0.06 MPa to 1 MPa using compressed air per ISO 8573-1:2010 [7:4:4], this unit provides a theoretical retracting force of 2721 N at 6 bar and maintains a CRC 4 corrosion resistance rating for ambient temperatures between -20 °C and 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185286
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185286.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...2000 mm
- Piston diameter
- 80 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Through piston rod
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...80 °C
- Cushioning length
- 30 mm
- Theoretical force at 6 bar, retracting
- 2721 N
- Theoretical force at 6 bar, advancing
- 2721 N
- Moving mass at 0 mm stroke
- 1364 g
- Additional moving mass per 10 mm stroke
- 78 g
- Basic weight with 0 mm stroke
- 5898 g
- Additional weight per 10 mm stroke
- 131 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G3/8
