Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

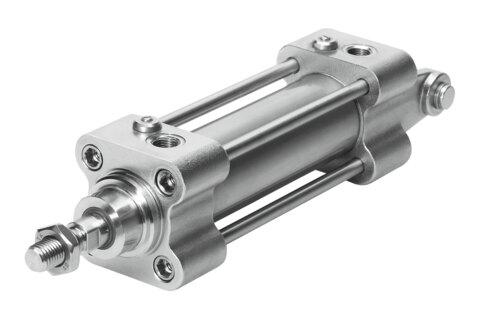

Reference imageConfirm configuration by manufacturer part number.
Festo
185303
ISO cylinder CRDNGS-63- -PPV-A-S6
The Festo 185303 is a double-acting industrial component featuring a 63 mm piston diameter, an M16x1.5 piston rod thread, and an adjustable stroke length ranging from 10 mm to 2000 mm based on the ISO 15552 norm. Built with pneumatic cushioning at both ends and a corrosion resistance class of CRC 4, it operates between 0.06 MPa and 1 MPa across an ambient temperature range of 0 °C to 120 °C using compressed air as per ISO 8573-1:2010 [7:4:4]. Position sensing is achieved via proximity switch, delivering a theoretical retracting force of 1682 N at 6 bar while accommodating oil lubrication for ongoing operation. Submit the exact part number, quantity, and application requirements to request a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185303
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185303.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...2000 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M16x1.5
- Based on norm
- ISO 15552
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Swivel clevis | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- End cap with swiveling rod eye
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- 0 °C...120 °C
- Cushioning length
- 23 mm
- Theoretical force at 6 bar, retracting
- 1682 N
- Theoretical force at 6 bar, advancing
- 1870 N
- Moving mass at 0 mm stroke
- 609 g
- Additional moving mass per 10 mm stroke
- 25 g
- Basic weight with 0 mm stroke
- 3807 g
- Additional weight per 10 mm stroke
- 60 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 185303. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
