Festo
185737

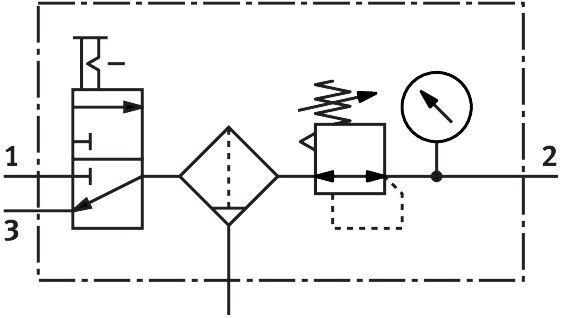

Service unit LFR-3/8-D-MIDI-KC
The Festo part number 185737 is a Midi size D series industrial component featuring an on-off valve and a filter regulator with a pressure gauge, designed for a vertical mounting position within ±5°. This assembly utilizes a rotary knob with detent for actuator locking, a 40 µm grade of filtration, and a manual rotating condensate drain with a maximum condensate volume of 43 cm³ protected by a metal bowl guard. Operating with compressed air as per ISO 8573-1:2010 [-:-:-] or inert gases, it supports an operating pressure of 0.1 MPa to 1.6 MPa (1 bar to 16 bar, 14.5 psi to 232 psi) and a normal nominal flow rate of 2700 l/min normalized to DIN 1343. Please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185737
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185737.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Manual, rotating
- Structural design
- On/off valve | Filter regulator with pressure gauge
- Max. condensate volume
- 43 cm³
- Bowl guard
- Metal bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.1 MPa...1.6 MPa | 1 bar...16 bar | 14.5 psi...232 psi
- Pressure regulation range MPa
- 0.05 MPa...1.2 MPa
- Pressure regulation range
- 0.5 bar...12 bar
- Pressure regulation range psi
- 7.25 psi...174 psi
- Max. pressure hysteresis
- 0.02 MPa | 0.2 bar | 2.9 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 2700 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:8:4] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 1600 g
- Type of mounting
- Alternatively: | In-line installation | With accessories
- Pneumatic connection 1
- G3/8
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 185737. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
