Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
185748

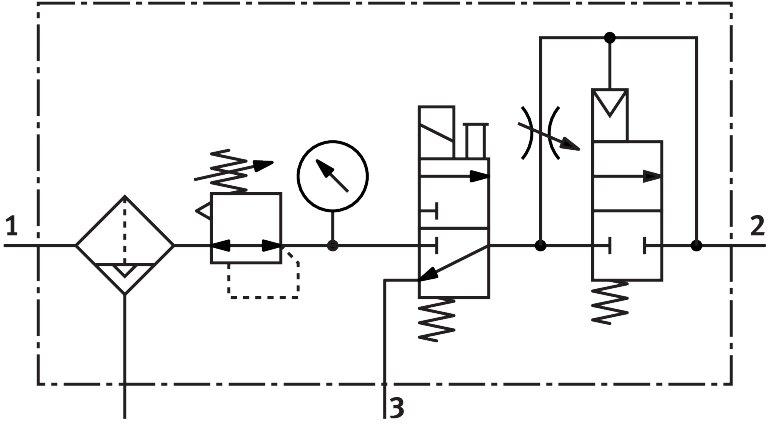

Service unit LFR-1/4-D-MIDI-KD-A
The Festo 185748 is a Midi size D series industrial component featuring an on-off valve, a safety start-up valve, and a filter regulator with a pressure gauge. It provides a 40 µm grade of filtration, a fully automatic condensate drain with a 43 cm³ max. condensate volume, and a rotary knob with detent actuator lock. Operating within a pressure range of 3 bar to 12 bar (43.5 psi to 174 psi) and a normal nominal flow rate of 1440 l/min, this unit utilizes a metal bowl guard and operates on compressed air per ISO 8573-1:2010 [-:-:-] or inert gases with a vertical ±5° mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185748
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185748.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Fully automatic
- Structural design
- On/off valve | Filter regulator with pressure gauge | Safety start-up valve
- Max. condensate volume
- 43 cm³
- Bowl guard
- Metal bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.3 MPa...1.2 MPa | 3 bar...12 bar | 43.5 psi...174 psi
- Pressure regulation range MPa
- 0.25 MPa...1.2 MPa
- Pressure regulation range
- 2.5 bar...12 bar
- Pressure regulation range psi
- 36.25 psi...174 psi
- Max. pressure hysteresis
- 0.025 MPa | 0.25 bar | 3.625 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 1440 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:8:4] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 2100 g
- Type of mounting
- Alternatively: | In-line installation | With accessories
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 185748. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
