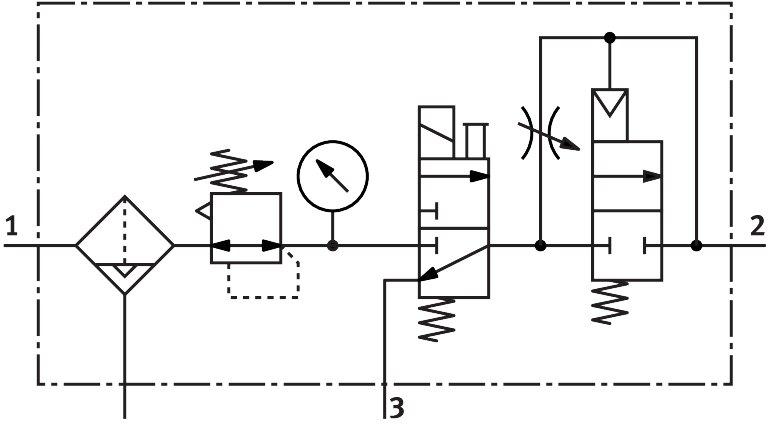

Reference imageConfirm configuration by manufacturer part number.
Festo
185750
Service unit LFR-3/8-D-MIDI-KD-A
The Festo 185750 is a Midi-size industrial component from the D series, featuring a structural design that integrates an on/off valve, a filter regulator with a pressure gauge, and a safety start-up valve. Operating within a pressure range of 3 bar to 12 bar (0.3 MPa to 1.2 MPa) and achieving a normal nominal flow rate of 1890 l/min, this unit incorporates a 40 µm filtration grade, a fully automatic condensate drain with a 43 cm³ max condensate volume, and a metal bowl guard. It is designed for vertical mounting within ±5° and utilizes a rotary knob with detent for actuator locking while maintaining a moderate corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185750
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185750.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Fully automatic
- Structural design
- On/off valve | Filter regulator with pressure gauge | Safety start-up valve
- Max. condensate volume
- 43 cm³
- Bowl guard
- Metal bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.3 MPa...1.2 MPa | 3 bar...12 bar | 43.5 psi...174 psi
- Pressure regulation range MPa
- 0.25 MPa...1.2 MPa
- Pressure regulation range
- 2.5 bar...12 bar
- Pressure regulation range psi
- 36.25 psi...174 psi
- Max. pressure hysteresis
- 0.025 MPa | 0.25 bar | 3.625 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 1890 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:8:4] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 2100 g
- Type of mounting
- Alternatively: | In-line installation | With accessories
