Festo
185800

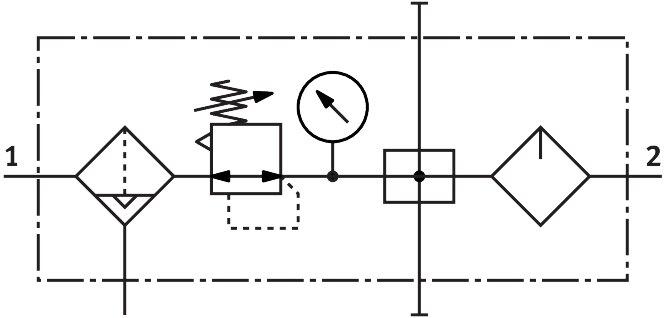

Service unit FRC-1/2-D-MIDI-KA-A
This Festo industrial component from the D-series in size Midi integrates a branching module, a filter regulator with a pressure gauge, and a proportional standard oil mist lubricator with a fully automatic condensate drain and a metal bowl guard. Operating within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar, 29 psi to 174 psi) and a regulation range of 0.05 MPa to 1.2 MPa (0.5 bar to 12 bar, 7.25 psi to 174 psi), the unit delivers a normal nominal flow rate of 2500 l/min for compressed air conforming to ISO 8573-1:2010 [-:-:-] or inert gases. It features a rotary knob with detent for the actuator lock, 40 µm filtration, a maximum condensate volume of 43 cm³, and a vertical ±5° mounting position with a CRC rating of 2. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185800
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185800.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Fully automatic
- Structural design
- Branching module | Filter regulator with pressure gauge | Proportional standard oil mist lubricator
- Max. condensate volume
- 43 cm³
- Bowl guard
- Metal bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar | 29 psi...174 psi
- Pressure regulation range MPa
- 0.05 MPa...1.2 MPa
- Pressure regulation range
- 0.5 bar...12 bar
- Pressure regulation range psi
- 7.25 psi...174 psi
- Max. pressure hysteresis
- 0.03 MPa | 0.3 bar | 4.35 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 2500 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:-] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 2400 g
- Type of mounting
- Alternatively: | In-line installation | With accessories
