Festo
185828

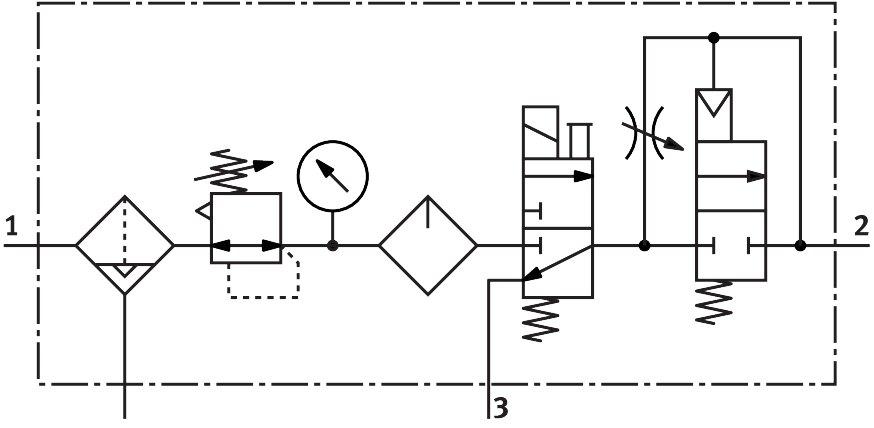

Service unit FRC-1/8-D-MINI-KE-A
The Festo part number 185828 is a mini industrial component from the D series, featuring an on/off valve, a filter regulator with a pressure gauge, a proportional standard oil mist lubricator, and a safety start-up valve. It operates at a pressure range of 0.3 MPa to 1.2 MPa (3 bar to 12 bar, or 43.5 psi to 174 psi) with a 40 µm filtration grade, a fully automatic condensate drain, and a maximum condensate volume of 22 cm³. This unit provides a normal nominal flow rate of 550 l/min for compressed air as per ISO 8573-1:2010 [-:-:-] or inert gases, utilizing a rotary knob with detent for actuator locking and a metal bowl guard. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185828
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185828.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Fully automatic
- Structural design
- On/off valve | Filter regulator with pressure gauge | Proportional standard oil mist lubricator | Safety start-up valve
- Max. condensate volume
- 22 cm³
- Bowl guard
- Metal bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.3 MPa...1.2 MPa | 3 bar...12 bar | 43.5 psi...174 psi
- Pressure regulation range MPa
- 0.25 MPa...1.2 MPa
- Pressure regulation range
- 2.5 bar...12 bar
- Pressure regulation range psi
- 36.25 psi...174 psi
- Max. pressure hysteresis
- 0.015 MPa | 0.15 bar | 2.175 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 550 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:-] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 1200 g
- Type of mounting
- Alternatively: | In-line installation
