Festo
185838

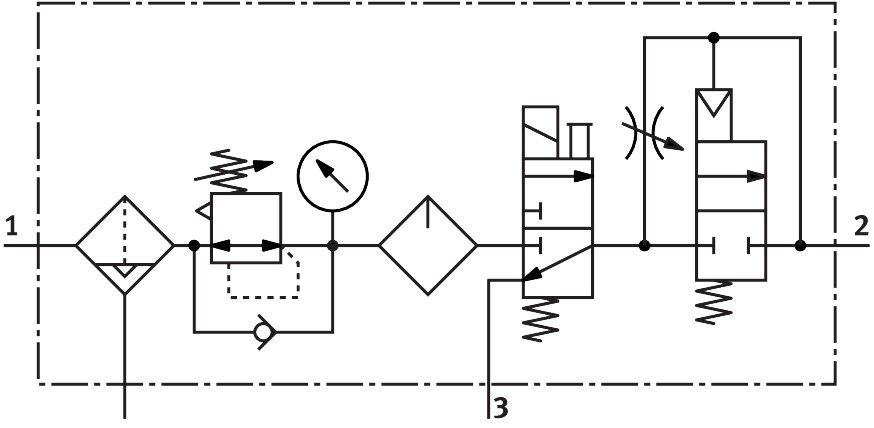

Service unit FRC-3/4-D-MAXI-KE-A
The Festo 185838 is a Maxi-size Series D industrial component featuring a structural design that integrates an on/off valve, a filter regulator with a pressure gauge, a proportional standard oil mist lubricator, and a safety start-up valve. It operates within a pressure range of 0.3 MPa to 1.2 MPa (3 bar to 12 bar / 43.5 psi to 174 psi) and delivers a normal nominal flow rate of 3800 l/min utilizing a 40 µm filtration grade and fully automatic condensate drain within a metal bowl guard. This unit provides a pressure regulation range of 0.25 MPa to 1.2 MPa (2.5 bar to 12 bar / 36.25 psi to 174 psi), a maximum pressure hysteresis of 0.03 MPa (0.3 bar / 4.35 psi), and a maximum condensate volume of 80 cm³ while maintaining vertical ±5° mounting and moderate corrosion resistance class 2. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185838
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185838.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Maxi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Fully automatic
- Structural design
- On/off valve | Filter regulator with pressure gauge | Proportional standard oil mist lubricator | Safety start-up valve
- Max. condensate volume
- 80 cm³
- Bowl guard
- Metal bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.3 MPa...1.2 MPa | 3 bar...12 bar | 43.5 psi...174 psi
- Pressure regulation range MPa
- 0.25 MPa...1.2 MPa
- Pressure regulation range
- 2.5 bar...12 bar
- Pressure regulation range psi
- 36.25 psi...174 psi
- Max. pressure hysteresis
- 0.03 MPa | 0.3 bar | 4.35 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 3800 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:-] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 4200 g
- Type of mounting
- Alternatively: | In-line installation
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 185838. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
