Festo
185868

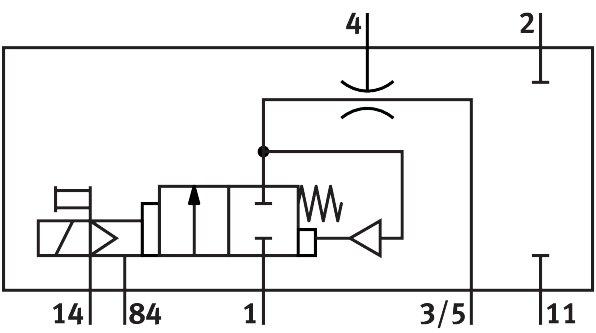

Vacuum generator CPV14-M1H-V95-1/8
The Festo 185868 is an industrial component featuring a 0.95 mm nominal width Laval nozzle and a die-cast aluminum housing with a product weight of 98 g. Designed with high vacuum ejector characteristics, it operates within a 3 bar to 8 bar operating pressure range, delivering a maximum vacuum of 85% using compressed air as per ISO 8573-1:2010 [7:4:4]. This unit supports any mounting position via through-hole installation, incorporates sub-base pneumatic connections 1 and 3 alongside a G1/8 vacuum connection, and features an electrical plug connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185868
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185868.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.95 mm
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Operating pressure
- 3 bar...8 bar
- Max. vacuum
- 85 %
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 98 g
- Electrical connection
- Plug
- Type of mounting
- With through-hole
- Pneumatic connection 1
- Sub-base
- Pneumatic connection 3
- Sub-base
- Vacuum connection
- G1/8
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
