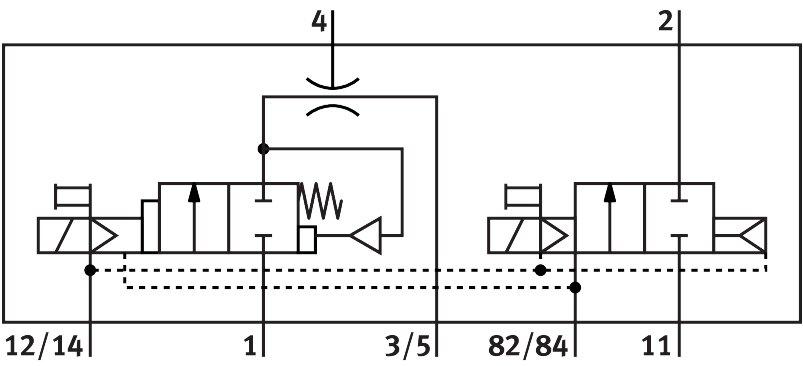

Reference imageConfirm configuration by manufacturer part number.
Festo
185871
Vacuum generator CPV14-M1H-VI95-2GLS-1/8
The Festo 185871 is an industrial component featuring a 0.95 mm nominal width Laval nozzle and high vacuum ejector characteristics within an operating pressure range of 2 bar to 10 bar. Constructed with a die-cast aluminum housing weighing 114 g, this part accommodates any mounting position using a through-hole, provides a G1/8 vacuum connection alongside sub-base pneumatic connections 1 and 3, and utilizes a plug electrical connection. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] at a medium and ambient temperature of 0 °C to 50 °C, allowing oil lubrication operation where required for further use. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185871
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185871.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.95 mm
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Operating pressure
- 2 bar...10 bar
- Max. vacuum
- 85 %
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 114 g
- Electrical connection
- Plug
- Type of mounting
- With through-hole
- Pneumatic connection 1
- Sub-base
- Pneumatic connection 3
- Sub-base
- Vacuum connection
- G1/8
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 185871. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
