Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

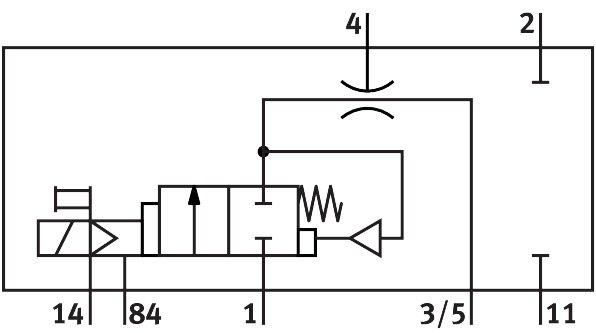

Reference imageConfirm configuration by manufacturer part number.
Festo
185874
Vacuum generator CPV18-M1H-V140-1/4
The Festo 185874 is an industrial component featuring a 1.4 mm nominal width Laval nozzle and high vacuum ejector characteristics delivering a maximum vacuum of 85 % within an operating pressure range of 3 bar to 8 bar. Housed in die-cast aluminum with a product weight of 227 g, this unit operates on compressed air matching ISO 8573-1:2010 [7:4:4] standards and supports any mounting position via a through-hole design, sub-base pneumatic connections, a G1/4 vacuum connection, and an electrical plug connection. It exhibits a corrosion resistance class of CRC 1, VDMA24364-B1/B2-L LABS conformity, RoHS compliant materials, and a medium and ambient temperature range of 0 °C to 50 °C with oil lubrication operation possible. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185874
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185874.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 1.4 mm
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Operating pressure
- 3 bar...8 bar
- Max. vacuum
- 85 %
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 227 g
- Electrical connection
- Plug
- Type of mounting
- With through-hole
- Pneumatic connection 1
- Sub-base
- Pneumatic connection 3
- Sub-base
- Vacuum connection
- G1/4
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 185874. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
