Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
185877

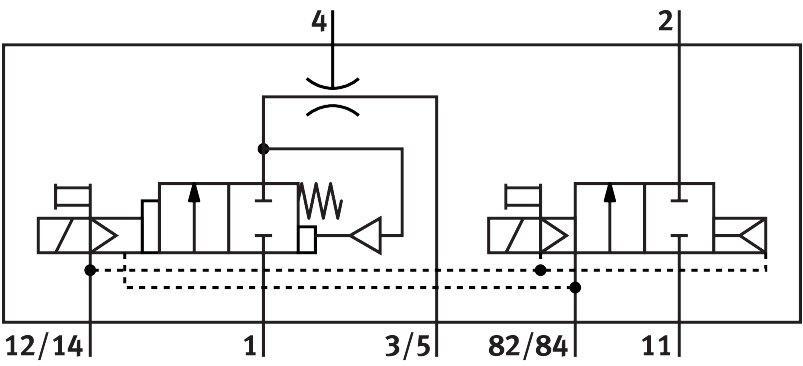

Vacuum generator CPV18-M1H-VI140-2GLS-1/4
The Festo 185877 is an industrial component featuring a 1.4 mm nominal width Laval nozzle, high vacuum ejector characteristics, and a maximum vacuum of 85%. Housed in die-cast aluminum with a product weight of 264 g, this unit operates at pressures ranging from 2 bar to 10 bar using compressed air as per ISO 8573-1:2010 [7:4:4]. It includes a sub-base pneumatic connection 1 and 3, a G1/4 vacuum connection, an electrical connection plug, and supports any mounting position via through-hole installation. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185877
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185877.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 1.4 mm
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Operating pressure
- 2 bar...10 bar
- Max. vacuum
- 85 %
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 264 g
- Electrical connection
- Plug
- Type of mounting
- With through-hole
- Pneumatic connection 1
- Sub-base
- Pneumatic connection 3
- Sub-base
- Vacuum connection
- G1/4
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 185877. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
