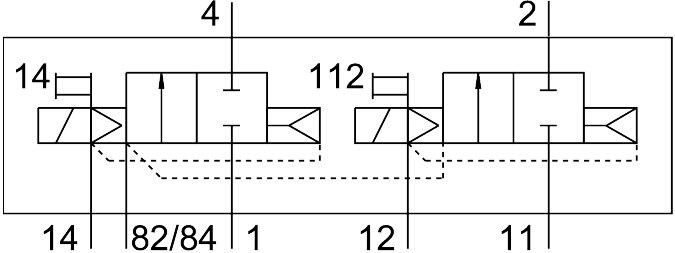

Reference imageConfirm configuration by manufacturer part number.
Festo
185886
Air solenoid valve CPV18-M1H-2X2-GLS-1/4
The Festo 185886 is an 18 mm electrical industrial component featuring a 2x2/2 closed, monostable piston gate valve design with a piloted type of control and soft sealing principle. This unit operates on 24V DC with an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), delivers a normal nominal flow rate of 1600 l/min through G1/4 pneumatic working ports, and includes an IP65 degree of protection alongside C-Tick certification. Additional technical properties consist of a pneumatic spring reset method, an 8 mm nominal width, non-reversible flow direction, positive overlap lap, internal or external pilot air supply ports, non-throttled exhaust air function, any mounting position, and detenting or non-detenting manual override. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185886
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185886.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x2/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- C-Tick
- Degree of protection
- IP65
- Nominal width
- 8 mm
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- b-value
- 0.41
- C value
- 6.3 l/sbar
- Switching time off
- 20 ms
- On switching time
- 14 ms
- Duty cycle
- 100%
- Electrical power consumption
- 1.5 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 185886. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
