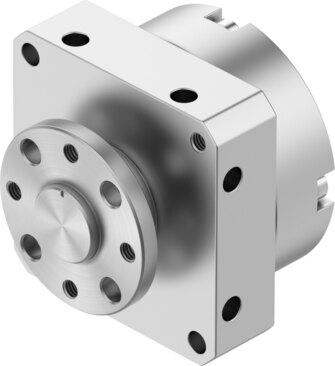

Name: Festo 185935 Rotary actuator DSM-8-180-P-FW
Brand: Festo

Rotary actuator DSM-8-180-P-FW

The Festo part number 185935 is a size 8 double-acting rotary vane industrial component featuring a 0 deg to 180 deg swivel angle and elastic cushioning rings or pads at both ends. Designed with a 0.5 deg cushioning angle, 10 mm permissible stop radius, and 1 deg repetition accuracy, it operates within a pressure range of 0.35 MPa to 0.8 MPa and supports a maximum swivel frequency of 3 Hz at 6 bar using compressed air as per ISO 8573-1:2010 [7:4:4]. This unit accommodates any mounting position, provides Class 6 cleanroom suitability according to ISO 14644-1, and withstands an ambient temperature range of 0 °C to 60 °C with a maximum stop force of 30 N and maximum axial force of 10 N. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 185935
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 185935.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 8
Cushioning angle: 0.5 deg
Swivel angle: 0 deg...180 deg
Permissible stop radius: 10 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Structural design: Rotary vane
Position sensing: None
Operating pressure: 0.35 MPa...0.8 MPa | 3.5 bar...8 bar
Max. swivel frequency at 6 bar: 3 Hz
Repetition accuracy: 1 deg
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: 0 °C...60 °C
Max. stop force: 30 N
Max. axial force: 10 N
Max. radial force: 20 N
Theoretical torque at 6 bar: 0.35 Nm
Permissible mass moment of inertia: 0.0013 kgm²
Product weight: 85 g
Type of mounting: With internal thread
Pneumatic connection: M3
Note on materials: RoHS compliant
Drive shaft material: high-alloy stainless steel
Seals material: TPE-U(PU)
Housing material: Aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 185935. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
