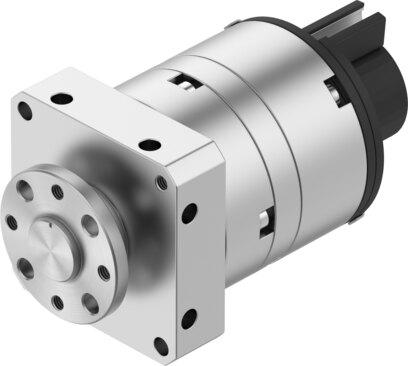

Reference imageConfirm configuration by manufacturer part number.
Festo
185939
Rotary actuator DSM-8-180-P-A-FF-FW
The Festo 185939 is a size 8 double-acting rotary vane industrial component featuring an adjustable swivel angle range from 0 degrees to 180 degrees with a precision adjustment of -5 degrees and a 0-degree cushioning angle. Operating at pressures between 0.35 MPa and 0.8 MPa utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4], this unit supports position sensing via proximity switch and achieves a maximum swivel frequency of 3 Hz at 6 bar with a repetition accuracy of 1 degree. It is rated for ambient temperatures from 0 °C to 60 °C, a permissible stop radius of 10 mm, a maximum stop force of 30 N, and a maximum axial force of 10 N in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185939
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185939.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 8
- Cushioning angle
- 0 deg
- Adjustment range of swivel angle
- 0 deg...180 deg
- Swivel angle
- 0 deg...180 deg
- Permissible stop radius
- 10 mm
- Mounting position
- Any
- Precision adjustment
- -5 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.35 MPa...0.8 MPa | 3.5 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. stop force
- 30 N
- Max. axial force
- 10 N
- Max. radial force
- 20 N
- Theoretical torque at 6 bar
- 0.35 Nm
- Permissible mass moment of inertia
- 0.0013 kgm²
- Product weight
- 162 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M3
- Covering material
- PA-reinforced
- Note on materials
- RoHS compliant
- Drive shaft material
- high-alloy stainless steel
- Seals material
- TPE-U(PU)
