185943

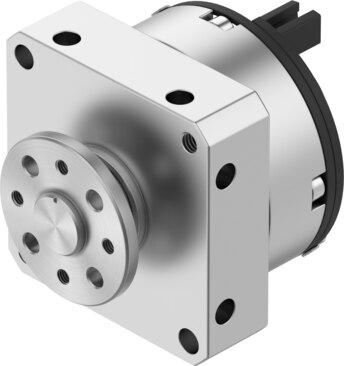

Name: Festo 185943 Rotary actuator DSM-10-90-P-A-FW
Brand: Festo

Rotary actuator DSM-10-90-P-A-FW

The Festo part number 185943 is a size 10 double-acting rotary vane industrial component featuring an adjustable swivel angle from 0 degrees to 90 degrees with a 0.5-degree cushioning angle and elastic cushioning rings or pads at both ends. Operating within a pressure range of 0.25 MPa to 0.8 MPa and utilizing compressed air per ISO 8573-1:2010 [7:4:4], this unit supports position sensing via proximity switch, a maximum swivel frequency of 3 Hz at 6 bar, and a repetition accuracy of 1 degree. It accommodates a maximum stop force of 60 N, a maximum axial force of 10 N, and a permissible stop radius of 13 mm in any mounting position across an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 185943
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 185943.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 10
Cushioning angle: 0.5 deg
Swivel angle: 0 deg...90 deg
Permissible stop radius: 13 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Structural design: Rotary vane
Position sensing: Via proximity switch
Operating pressure: 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
Max. swivel frequency at 6 bar: 3 Hz
Repetition accuracy: 1 deg
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: 0 °C...60 °C
Max. stop force: 60 N
Max. axial force: 10 N
Max. radial force: 30 N
Theoretical torque at 6 bar: 0.85 Nm
Permissible mass moment of inertia: 0.0026 kgm²
Product weight: 159 g
Type of mounting: With internal thread
Pneumatic connection: M3
Note on materials: RoHS compliant
Drive shaft material: high-alloy stainless steel
Seals material: TPE-U(PU)
Housing material: Aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 185943. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
