Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

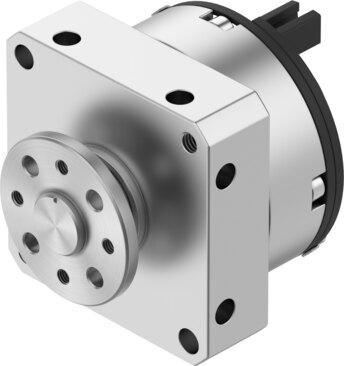

Reference imageConfirm configuration by manufacturer part number.
Festo
185945
Rotary actuator DSM-10-240-P-A-FW
The Festo size 10 industrial component utilizes a double-acting rotary vane structural design with an adjustable swivel angle from 0 degrees to 240 degrees and a cushioning angle of 0.5 degrees. It operates within a pressure range of 0.25 MPa to 0.8 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], featuring elastic cushioning rings or pads at both ends, position sensing via proximity switch, and a maximum stop force of 60 N at a permissible stop radius of 13 mm. Built for any mounting position with Class 6 cleanroom suitability according to ISO 14644-1 and a corrosion resistance class of 0, this unit achieves a maximum swivel frequency of 2 Hz at 6 bar and a repetition accuracy of 1 degree within an ambient temperature range of 0 degrees C to 60 degrees C. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185945
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185945.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 10
- Cushioning angle
- 0.5 deg
- Swivel angle
- 0 deg...240 deg
- Permissible stop radius
- 13 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Max. swivel frequency at 6 bar
- 2 Hz
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Max. stop force
- 60 N
- Max. axial force
- 10 N
- Max. radial force
- 30 N
- Theoretical torque at 6 bar
- 0.85 Nm
- Permissible mass moment of inertia
- 0.0026 kgm²
- Product weight
- 159 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Drive shaft material
- high-alloy stainless steel
- Seals material
- TPE-U(PU)
- Housing material
- Aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 185945. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
