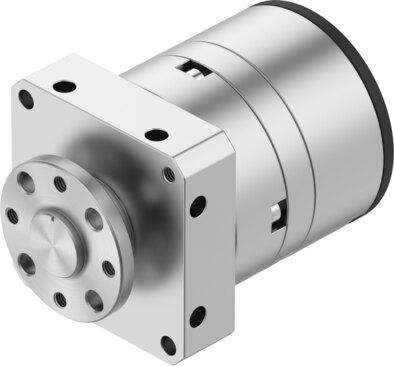

Reference imageConfirm configuration by manufacturer part number.
Festo
185946
Rotary actuator DSM-10-240-P-FF-FW
The Festo part number 185946 is a double-acting industrial component featuring a rotary vane structural design with a size 10 and a swivel angle adjustment range from 0 deg to 200 deg. Operating within a pressure range of 0.25 MPa to 0.8 MPa and utilizing compressed air as per ISO 8573-1:2010 [7:4:4], this unit supports a maximum swivel frequency of 2 Hz at 6 bar and a repetition accuracy of 1 deg. The assembly permits an ambient temperature range of 0 °C to 60 °C while accommodating a maximum stop force of 60 N and a maximum axial force of 10 N in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 185946
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 185946.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 10
- Cushioning angle
- 0 deg
- Adjustment range of swivel angle
- 0 deg...200 deg
- Swivel angle
- 0 deg...200 deg
- Permissible stop radius
- 13 mm
- Mounting position
- Any
- Precision adjustment
- -5 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Max. swivel frequency at 6 bar
- 2 Hz
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. stop force
- 60 N
- Max. axial force
- 10 N
- Max. radial force
- 30 N
- Theoretical torque at 6 bar
- 0.85 Nm
- Permissible mass moment of inertia
- 0.0026 kgm²
- Product weight
- 250 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M3
- Covering material
- PA-reinforced
- Note on materials
- RoHS compliant
- Drive shaft material
- high-alloy stainless steel
- Seals material
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 185946. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
