Festo
186061
Service unit FRC-1/2-D-MAXI-KF

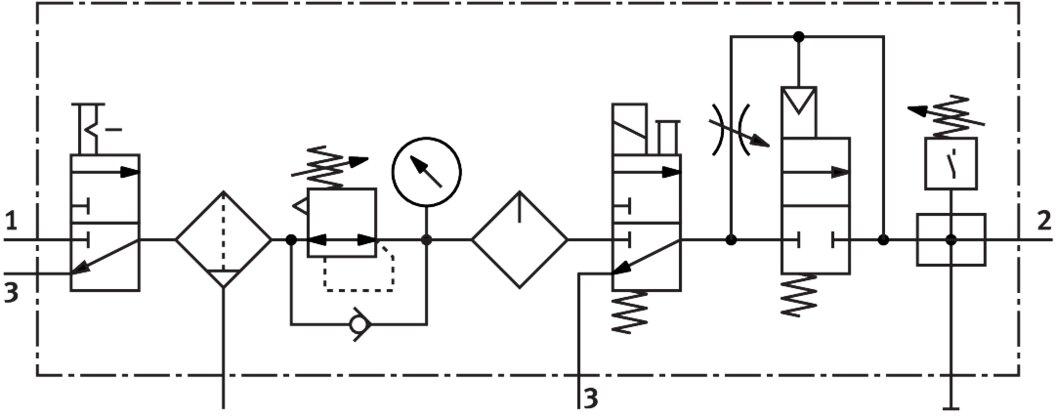

The Festo part number 186061 is a Maxi size Series D industrial component featuring a structural design that integrates a branching module, pressure switch, on/off valve, filter regulator with pressure gauge, proportional standard oil mist lubricator, and safety start-up valve. This unit operates within a pressure range of 0.3 MPa to 1.6 MPa (3 bar to 16 bar / 43.5 psi to 232 psi) and provides a normal nominal flow rate of 3400 l/min using compressed air as per ISO 8573-1:2010 [-:-:-] or inert gases. Equipped with a 40 µm filtration grade, manual rotating condensate drain, metal bowl guard, and a rotary knob with detent for actuator locking, it requires a vertical ±5° mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 186061
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 186061.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Maxi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Manual, rotating
- Structural design
- Branching module | Pressure switch | On/off valve | Filter regulator with pressure gauge | Proportional standard oil mist lubricator | Safety start-up valve
- Max. condensate volume
- 80 cm³
- Bowl guard
- Metal bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.3 MPa...1.6 MPa | 3 bar...16 bar | 43.5 psi...232 psi
- Pressure regulation range MPa
- 0.25 MPa...1.2 MPa
- Pressure regulation range
- 2.5 bar...12 bar
- Pressure regulation range psi
- 36.25 psi...174 psi
- Max. pressure hysteresis
- 0.03 MPa | 0.3 bar | 4.35 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 3400 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:-] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 6300 g
- Type of mounting
- Alternatively:
