Festo
186099

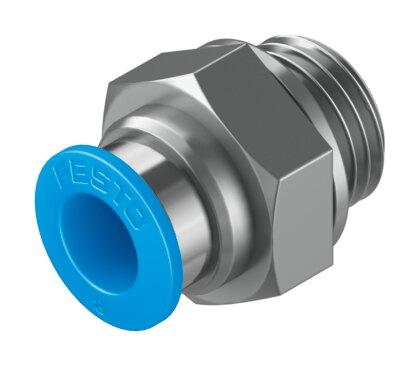

Push-in fitting QS-G1/4-8
The Festo 186099 is a standard straight industrial component utilizing a push-pull structural design with a 7 mm nominal width and an 18.2 mm tubing insertion depth. It operates with compressed air or liquid water across a temperature-dependent pressure range of -0.095 MPa to 1.4 MPa and an ambient temperature range of -10 °C to 80 °C. This pack of 10 components features an external hexagon SW17 for a nominal tightening torque of 9 Nm with a ±20% tolerance, a sealing ring on the screwed plug, and a product weight of 15 g per unit. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 186099
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 186099.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 7 mm
- Tubing insertion depth
- 18.2 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible | Water: G-thread only possible with sealing ring type OL as additional | accessory
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Nominal tightening torque
- 9 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 15 g
- Type of mounting
- External hexagon SW17
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Releasing ring material
- POM
