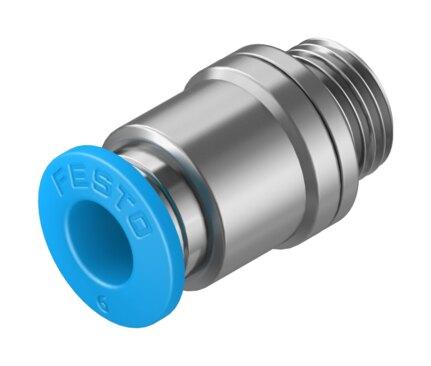

Name: Festo 186107 Push-in fitting QS-G1/8-6-I
Brand: Festo

Push-in fitting QS-G1/8-6-I

The Festo part number 186107 is a standard straight industrial component featuring a 4.2 mm nominal width and a 17 mm tubing insertion depth utilizing a push-pull structural design with an internal hexagon AF 4 mounting type. It operates across an ambient temperature range of -10 °C to 80 °C, supporting compressed air per ISO 8573-1:2010 [7:-:-] and liquid, ice-free water with a nominal tightening torque of 5.4 Nm (±20%). Each pack size contains 10 units, weighing 8.3 g each with a corrosion resistance class of 1 and a sealing ring type of seal on the screwed plug. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 186107
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 186107.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 4.2 mm
Tubing insertion depth: 17 mm
Type of seal on screwed plug: Sealing ring
Mounting position: Any
Design: Straight design
Pack size: 10
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
Information on operating pressure: Water: max. 0.6 MPa at max. 50 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Information on operating and pilot media: Lubricated operation possible | Water: G-thread only possible with sealing ring type OL as additional | accessory
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...80 °C
Nominal tightening torque: 5.4 Nm
Tolerance for nominal tightening torque: ±20%
Product weight: 8.3 g
Type of mounting: Internal hexagon, AF 4
Pneumatic connection 1: External thread G1/8
Pneumatic connection 2: for pneumatic tubing outside diameter 6 mm
Releasing ring color: Blue
Note on materials: RoHS compliant
Housing material: Brass, nickel-plated
Releasing ring material: POM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 186107. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
