186113

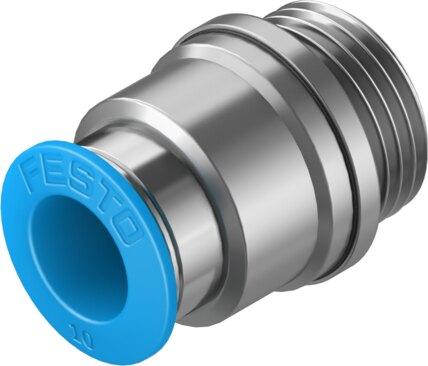

Name: Festo 186113 Push-in fitting QS-G3/8-10-I
Brand: Festo

Push-in fitting QS-G3/8-10-I

The Festo part number 186113 is a straight industrial component featuring a 7.3 mm nominal width and a 20.7 mm tubing insertion depth utilizing a push-pull structural design with an internal hexagon AF 7 mounting type. This component operates with compressed air as per ISO 8573-1:2010 [7:-:-] or liquid, ice-free water across an ambient temperature range of -10 °C to 80 °C, supporting a nominal tightening torque of 15.5 Nm with a ±20% tolerance. Supplied in a pack size of 10 with a product weight of 22 g each, the unit features a sealing ring on the screwed plug and holds a corrosion resistance class of CRC 1. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 186113
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 186113.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 7.3 mm
Tubing insertion depth: 20.7 mm
Type of seal on screwed plug: Sealing ring
Mounting position: Any
Design: Straight design
Pack size: 10
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
Information on operating pressure: Water: max. 0.6 MPa at max. 50 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Information on operating and pilot media: Lubricated operation possible | Water: G-thread only possible with sealing ring type OL as additional | accessory
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...80 °C
Nominal tightening torque: 15.5 Nm
Tolerance for nominal tightening torque: ±20%
Product weight: 22 g
Type of mounting: Internal hexagon, AF 7
Pneumatic connection 1: External thread G3/8
Pneumatic connection 2: for pneumatic tubing outside diameter 10 mm
Releasing ring color: Blue
Note on materials: RoHS compliant
Housing material: Brass, nickel-plated
Releasing ring material: POM
