Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

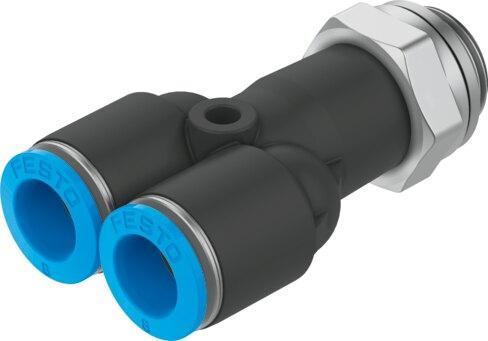

Reference imageConfirm configuration by manufacturer part number.
Festo
186179
Push-in Y-fitting QSY-G1/8-4
The Festo 186179 is a standard Y-shaped industrial component featuring a 3.1 mm nominal width, a 14.9 mm tubing insertion depth, and a push-pull structural design with a sealing ring on the screwed plug. Operating across an ambient temperature range of -10 °C to 80 °C, this unit supports compressed air and ice-free liquid water media with a nominal tightening torque of 5.4 Nm (±20%) and weighs 15 g with a pack size of 10. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 186179
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 186179.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 3.1 mm
- Tubing insertion depth
- 14.9 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Y-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible | Water: G-thread only possible with sealing ring type OL as additional | accessory
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Nominal tightening torque
- 5.4 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 15 g
- No. of outlets
- 2
- No. of supply lines
- 1
- Type of mounting
- External hexagon SW13
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Blue
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 186179. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
