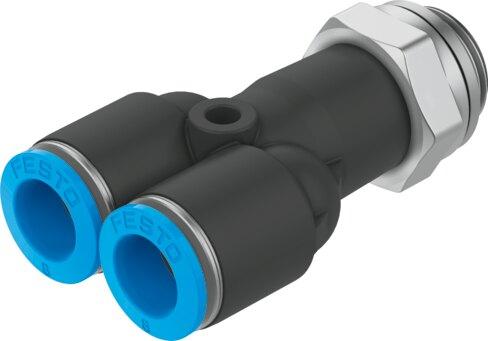

Reference imageConfirm configuration by manufacturer part number.
Festo
186184
Push-in Y-fitting QSY-G3/8-8
The Festo 186184 is a standard Y-shaped industrial component featuring a 6.6 mm nominal width, 18.1 mm tubing insertion depth, and a push-pull structural design with a sealing ring on the screwed plug. Operating on compressed air or liquid, ice-free water, it supports pressures from -0.095 MPa to 1.4 MPa and ambient temperatures between -10 °C and 80 °C. Each pack contains 10 units with a product weight of 35 g each, a nominal tightening torque of 15.5 Nm with a ±20% tolerance, ISO Class 4 cleanroom suitability, and CRC 1 corrosion resistance. Submit part number 186184, desired quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 186184
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 186184.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 6.6 mm
- Tubing insertion depth
- 18.1 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Y-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible | Water: G-thread only possible with sealing ring type OL as additional | accessory
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Nominal tightening torque
- 15.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 35 g
- No. of outlets
- 2
- No. of supply lines
- 1
- Type of mounting
- External hexagon SW19
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Releasing ring color
- Blue
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 186184. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
