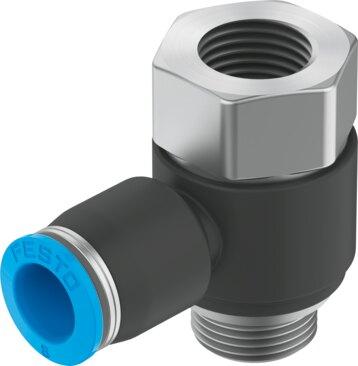

Reference imageConfirm configuration by manufacturer part number.
Festo
186207
Push-in T-fitting QSTF-G3/8-12
The Festo 186207 is an L-shaped industrial component featuring an 8.7 mm nominal width, a 23.4 mm tubing insertion depth, and an internal thread lengthwise connection utilizing a sealing ring on the screwed plug. Operating via a push-pull structural design, this standard-sized part handles compressed air and liquid water across a temperature range of -10 °C to 80 °C with pressures up to 1.4 MPa. Weighing 77 g and rated at CRC 1 with a nominal tightening torque of 15.5 Nm, it accommodates lubricated operation and achieves ISO 14644-1 Class 4 cleanroom suitability. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 186207
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 186207.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 8.7 mm
- Tubing insertion depth
- 23.4 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- L-shape, additional connection internal thread lengthwise
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible | Water: G-thread only possible with sealing ring type OL as additional | accessory
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Nominal tightening torque
- 15.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 77 g
- No. of outlets
- 2
- No. of supply lines
- 1
- Type of mounting
- External hexagon SW24
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- Internal thread G3/8 | for pneumatic tubing outside diameter 12 mm
- Releasing ring color
- Blue
