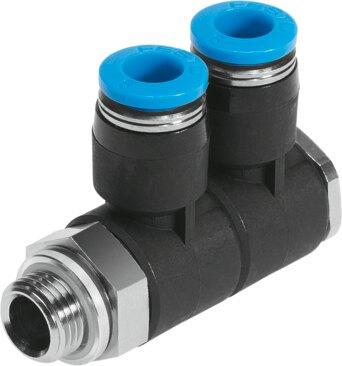

Reference imageConfirm configuration by manufacturer part number.
Festo
186231
Multiple distributor QSLV2-G3/8-12
The Festo 186231 is a standard industrial component featuring a nominal width of 6.3 mm, a tubing insertion depth of 23.4 mm, one supply line, and two outlets utilizing a push-pull structural design with a sealing ring on the screwed plug. This part operates with compressed air as per ISO 8573-1:2010 [7:-:-] or ice-free liquid water, supporting an operating pressure of -0.095 MPa to 0.6 MPa across its full temperature range of -10 °C to 80 °C and up to 1.4 MPa depending on temperature. Weighing 135 g with a CRC rating of 1 for low corrosion stress and VDMA24364-B1/B2-L LABS conformity, the unit requires a nominal tightening torque of 15.5 Nm within a ±20% tolerance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 186231
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 186231.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 6.3 mm
- Tubing insertion depth
- 23.4 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Structural design
- Push-pull principle
- Pack size
- 1
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible | Water: G-thread only possible with sealing ring type OL as additional | accessory
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Nominal tightening torque
- 15.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 135 g
- No. of outlets
- 2
- No. of supply lines
- 1
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Hollow bolt material
- Brass, nickel-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 186231. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
