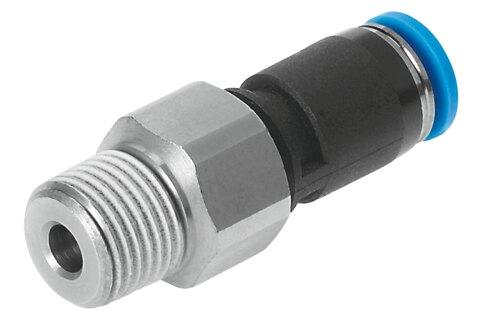

Name: Festo 186276 Push-in fitting, rotatable QSR-G1/8-4
Brand: Festo

Push-in fitting, rotatable QSR-G1/8-4

The Festo industrial component 186276 is a straight-design fitting featuring a 2.1 mm nominal width, 16.1 mm tubing insertion depth, and a sealing ring on the screwed plug for any mounting position. Utilizing a push-pull structural design, it operates with compressed air per ISO 8573-1:2010 [7:-:-] across an operating pressure range of -0.095 MPa to 0.6 MPa and handles a maximum rotational speed of 500 rpm with a nominal tightening torque of 5.4 Nm (±20%). This 15 g unit exhibits a corrosion resistance class of 1, accommodates lubricated operation, and functions within an ambient temperature range of 0 °C to 60 °C. Request a quote for part number 186276 by specifying your required quantity and application parameters.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 186276
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 186276.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 2.1 mm
Tubing insertion depth: 16.1 mm
Type of seal on screwed plug: Sealing ring
Mounting position: Any
Design: Straight design
Pack size: 1
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
Max. rotational speed: 500 rpm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: 0 °C...60 °C
Max. radial torque: 0.006 Nm
Nominal tightening torque: 5.4 Nm
Tolerance for nominal tightening torque: ±20%
Product weight: 15 g
Type of mounting: External hexagon SW13
Pneumatic connection 1: External thread G1/8
Pneumatic connection 2: for pneumatic tubing outside diameter 4 mm
Releasing ring color: Blue
Material of screwed plug: Brass, nickel-plated
Note on materials: RoHS compliant
Housing material: PBT
Releasing ring material: POM
