Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

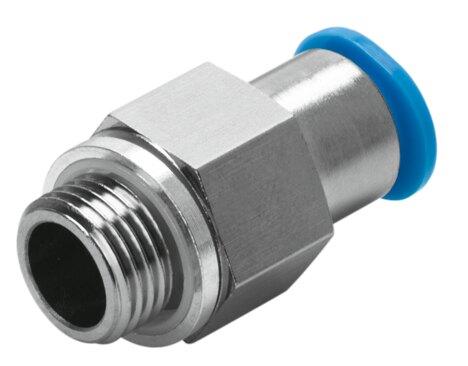

Reference imageConfirm configuration by manufacturer part number.
Festo
186295
Push-in fitting, self-sealing QSMK-G1/8-6
This standard Festo industrial component features a straight design with a 3 mm nominal width and a push-pull structural design utilizing a sealing ring on the screwed plug. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -10 °C to 80 °C, supporting a nominal tightening torque of 5.4 Nm with a ±20% tolerance. The part is compatible with a wide range of approved tubing types including PAN, PEN, PUN, and PLN series, with a tubing insertion depth of 13.4 mm and a corrosion resistance class of CRC 1. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 186295
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 186295.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 3 mm
- Approved tubing type
- PAN- | PAN-MF- | PAN-R- | PAN-V0- | PEN- | PFAN- | PLN- | PTFEN- | PUN- | PUN-CM- | PUN-DUO- | PUN-H- | PUN-H-DUO- | PUN-S- | PUN-S-DUO- | PUN-V0-
- Tubing insertion depth
- 13.4 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Nominal tightening torque
- 5.4 Nm
- Tolerance for nominal tightening torque
- ±20%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 186295. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
