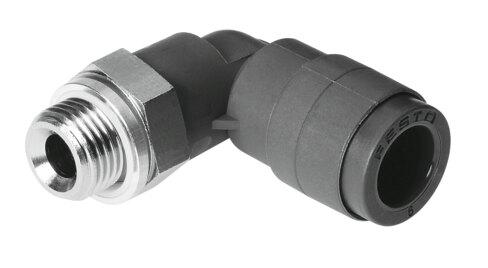

Reference imageConfirm configuration by manufacturer part number.
Festo
186327
Push-in L-fitting QSL-V0-G1/4-6
The Festo part number 186327 is an L-shaped industrial component featuring a 4.3 mm nominal width and a push-pull structural design for 6 mm outside diameter pneumatic tubing and a G1/4 external thread. Constructed with a UL94 V-0 housing and releasing ring, this standard-sized unit supports a -0.95 bar to 10 bar operating pressure range for compressed air and water media while offering moderate corrosion resistance class 2. It incorporates an external hexagon SW17 mounting requiring a nominal tightening torque of 9 Nm with a \u00b120% tolerance, a sealing ring on the screwed plug, and a pack size of 10. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 186327
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 186327.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 4.3 mm
- Material re test
- UL94 V-0 (housing) | UL94 V-0 (releasing ring)
- Type of seal on screwed plug
- Sealing ring
- Design
- L-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Nominal tightening torque
- 9 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 23 g
- Type of mounting
- External hexagon SW17
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Black
- Material of screwed plug
- Brass, nickel-plated
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Material of threaded seal
- Aluminum | PBT
- Releasing ring material
- PBT
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 186327. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
