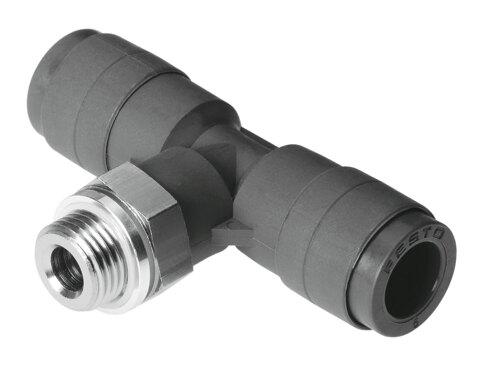

Reference imageConfirm configuration by manufacturer part number.
Festo
186336
Push-in T-fitting QST-V0-G1/8-6
The Festo 186336 is a standard T-shaped industrial component featuring a nominal width of 4.2 mm, a G1/8 external thread pneumatic connection 1, and connection 2 for a 6 mm outside diameter pneumatic tubing using a push-pull structural design. Constructed with a UL94 V-0 housing and releasing ring alongside a sealing ring on the screwed plug, this part operates within a pressure range of -0.095 MPa to 1 MPa for compressed air as per ISO 8573-1:2010 [7:-:-] or water up to 0.6 MPa at 50 °C, supporting lubricated operation across an ambient temperature range of 0 °C to 60 °C. The unit weighs 19 g, features a CRC 2 moderate corrosion resistance rating, VDMA24364-B1/B2-L LABS conformity, and mounts via an external hexagon SW13 using a nominal tightening torque of 7 Nm with a ±20% tolerance. Submit the exact part number, quantity, and application requirements to request a quote for a pack size of 10.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 186336
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 186336.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 4.2 mm
- Material re test
- UL94 V-0 (housing) | UL94 V-0 (releasing ring)
- Type of seal on screwed plug
- Sealing ring
- Design
- T-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Nominal tightening torque
- 7 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 19 g
- Type of mounting
- External hexagon SW13
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Black
- Material of screwed plug
- Brass, nickel-plated
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Material of threaded seal
- Aluminum | PBT
- Releasing ring material
- PBT
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
