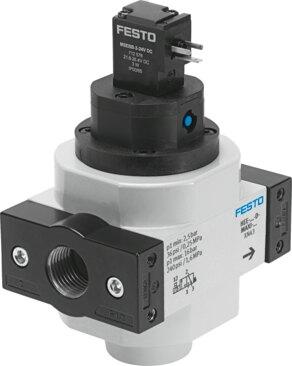

Name: Festo 186518 On/off valve HEE-1/2-D-MAXI-24
Brand: Festo

On/off valve HEE-1/2-D-MAXI-24

The Festo 186518 is an electrical piston gate valve featuring a 3/2-way, closed, monostable valve function with piloted control and a soft sealing principle. It delivers a normal nominal flow rate of 5600 l/min at a C value of 24.2 l/sbar and a b-value of 0.3, operating within a pressure range of 0.25 MPa to 1.6 MPa using compressed air or inert gases. Equipped with a detenting manual override, mechanical spring reset, and a 24 V DC, 2.5 W coil with a 100% duty cycle, this RoHS-compliant component exhibits a moderate corrosion stress rating and supports oil-lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 186518
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 186518.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: Piston gate valve
Actuation type: Electrical
Sealing principle: Soft
Exhaust air function: Cannot be throttled
Manual override: Detenting
Reset method: Mechanical spring
Type of control: Piloted
Valve function: 3/2-way, closed, monostable
Operating pressure: 0.25 MPa...1.6 MPa | 2.5 bar...16 bar
Lap: Positive overlap
C value: 24.2 l/sbar
b-value: 0.3
Normal nominal ow rate (normalized to DIN 1343): 5600 l/min
Duty cycle: 100%
Coil characteristics: 24 V DC: 2.5 W
Permissible voltage uctuations: +/- 10%
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Note on materials: RoHS compliant
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Type of mounting: In-line installation | With accessories
Mounting position: Any
Flow direction: Non-reversible
Product weight: 800 g
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/2

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 186518. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
