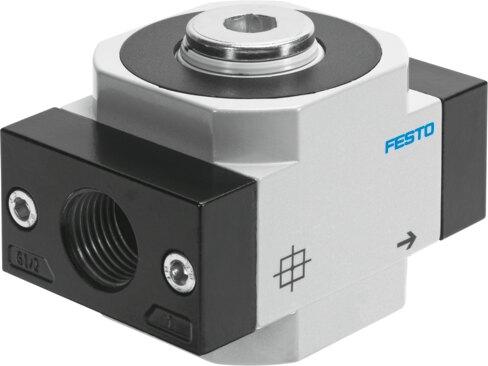

Reference imageConfirm configuration by manufacturer part number.
Festo
186524
Branching module FRM-1/2-D-MAXI
The Festo part number 186524 is an industrial component featuring a branching module structural design with a die-cast zinc housing and a product weight of 706 g. This RoHS-compliant unit operates with compressed air as per ISO 8573-1:2010 [7:-:-] or inert gases at an operating pressure ranging from 0 MPa to 1.6 MPa (0 bar to 16 bar) and achieves a standard nominal flow rate of 11700 l/min in the main flow direction 1 to 2. It is equipped with pneumatic connection 1 (G1/2), connection 2 (G1/2), connection 3 (G3/4), and connection 4 (G1/4), supports any mounting position, and withstands storage, medium, and ambient temperatures between -10 °C and 60 °C alongside a corrosion resistance class (CRC) of 2 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 186524
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 186524.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Structural design
- Branching module
- Operating pressure
- 0 MPa...1.6 MPa | 0 bar...16 bar
- Standard nominal ow rate in main ow direction 1 -> 2
- 11700 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 706 g
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
- Pneumatic connection 3
- G3/4
- Pneumatic connection 4
- G1/4
- Note on materials
- RoHS compliant
- Housing material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 186524. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
