Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

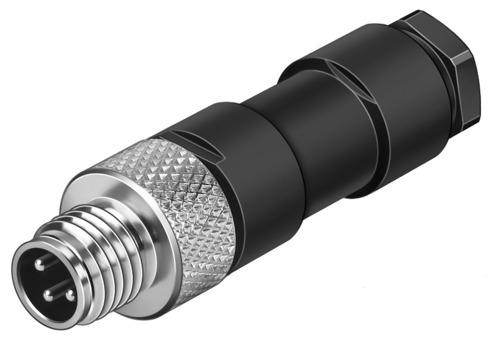

Reference imageConfirm configuration by manufacturer part number.
Festo
18696
Plug SEA-GS-M8
The Festo 18696 is an industrial component featuring a 3-pin M8x1 straight plug with solder connection and a threaded sleeve mounting style that allows installation in any mounting position. Rated for 60 V DC and AC operating voltages, 3 A current at 40Þg C, and a 1.5 kV surge resistance, this IP67-rated part operates within an ambient temperature range of -40 ÞgC to 85 ÞgC. It complies with EN 61076-2-101 and EN 61984 norms, includes CE and UKCA markings per relevant electrical directives, and features RoHS-compliant materials with a VDMA24364-B2-L LABS conformity and a moderate corrosion resistance class of 2. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 18696
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 18696.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-101 | EN 61984
- Type of mounting
- With threaded sleeve
- Mounting position
- Any
- Product weight
- 9 g
- Electrical connection
- 3-pin | M8x1 | Straight plug/solder connection
- DC operating voltage range
- 60 V
- Operating voltage range AC
- 60 V
- Current rating at 40° C
- 3 A
- Surge resistance
- 1.5 kV
- Cable tting
- Pg7
- Approved cable diameter
- 3.5 mm...5 mm
- Connection cross section
- 0.25 mm²
- Degree of protection
- IP67
- Ambient temperature
- -40 °C...85 °C
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS-compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Housing material
- PA
- Housing colour
- Black
- Material of union nut
- Brass, nickel-plated
- Material of pin contacts
- Brass | Gold-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 18696. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
