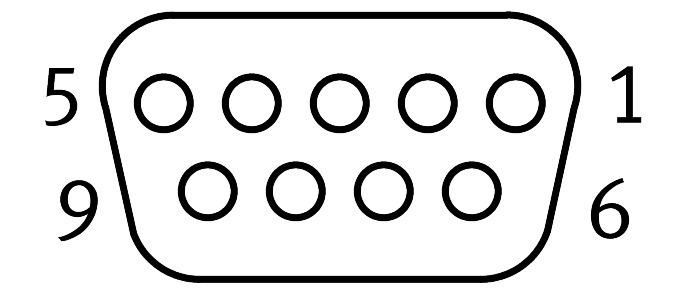

Reference imageConfirm configuration by manufacturer part number.
Festo
18697
Connecting cable KMP3-9P-08-
The Festo part number 18697 is an industrial component designed with accessories based on the DIN 41652 norm featuring a contact durability of 50. Electrical connection 1 operates on the field device side with a square, angled Sub-D socket design utilizing 9 of 9 pins and mounting via two M3 screws, while electrical connection 2 acts on the control side with an open-end cable containing 10 pins with 9 occupied. This component supports a DC operating voltage range from 0 V to 30 V, a nominal operating voltage of 24 V DC, a current rating of 3 A at 40° C, and a surge resistance of 1 kV. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 18697
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 18697.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- DIN 41652
- Cable designation
- With accessories
- Contact durability
- 50
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 1, number of pins/wires
- 9
- Electrical connection 1, occupied pins/wires
- 9
- Electrical connection 1, type of mounting
- 2x M3 screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 10
- Electrical connection 2, occupied pins/wires
- 9
- DC operating voltage range
- 0 V...30 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 3 A
- Surge resistance
- 1 kV
- Cable length
- 1 m...99 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 30 mm
- Bending radius, exible cable installation
- 75 mm
- Cable diameter
- 7.15 mm
- Cable diameter tolerance
- ± 0.3 mm
- Cable design
- 10 x 0.34 mm²
- Nominal conductor cross section
- 0.34 mm²
- Wire ends
- Cut off bluntly
- Degree of protection
- IP65
