Festo
18698
Connecting cable KMP3-9P-08-5

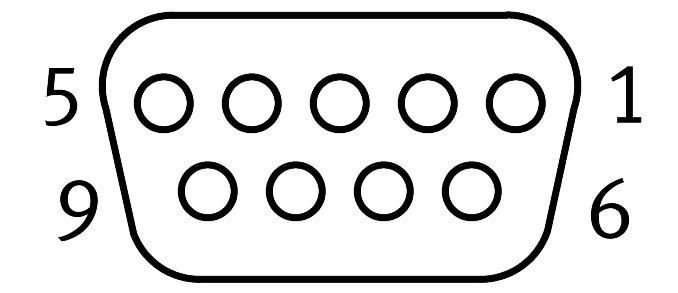

This Festo industrial component, part number 18698, is based on the DIN 41652 norm and weighs 425 g with a cable designation including accessories and a contact durability of 50. Electrical connection 1 features a field device side square angled socket using Sub-D connection technology with 9 pins, 9 occupied wires, and 2x M3 screw mounting. Electrical connection 2 provides a control side open-ended cable with 10 pins and 9 occupied wires, supporting a DC operating voltage range of 0 V to 30 V, a nominal DC operating voltage of 24 V, and a current rating of 3 A at 40° C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 18698
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 18698.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- DIN 41652
- Cable designation
- With accessories
- Contact durability
- 50
- Product weight
- 425 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 1, number of pins/wires
- 9
- Electrical connection 1, occupied pins/wires
- 9
- Electrical connection 1, type of mounting
- 2x M3 screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 10
- Electrical connection 2, occupied pins/wires
- 9
- DC operating voltage range
- 0 V...30 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 3 A
- Surge resistance
- 1 kV
- Cable length
- 5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 30 mm
- Bending radius, exible cable installation
- 75 mm
- Cable diameter
- 7.15 mm
- Cable diameter tolerance
- ± 0.3 mm
- Cable design
- 10 x 0.34 mm²
- Nominal conductor cross section
- 0.34 mm²
- Wire ends
- Cut off bluntly
