Festo
187821

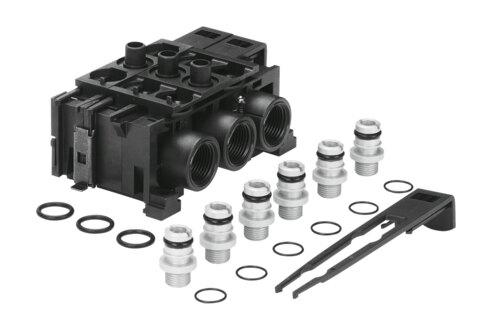

Manifold block CPE18-PRSGO-3
The Festo part number 187821 is an industrial component featuring a maximum of 3 valve positions and a product weight of 225 g with a PA-reinforced housing material. Operating with compressed air as per ISO 8573-1:2010 [7:4:4], this RoHS-compliant unit allows operation with oil lubrication and offers sub-base mounting via a through-hole or DIN rail with a G1/2 pneumatic connection 1. It is rated for corrosion resistance class 2 and VDMA24364-B1/B2-L LABS conformity under moderate corrosion stress. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 187821
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 187821.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 3
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 225 g
- Sub-base mounting type
- With through-hole | With DIN rail
- Pneumatic connection 1
- G1/2
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
